| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T10_9000004282_29871cztM0_level2.evt | modeM0/AS1A10_102T10_9000004282_29871cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,272,640 | 85,176,000 |
| Size | 572.5 MB | 81.2 MB |
| Events in quadrant A | 3,496,005 | 536,363 |
| Events in quadrant B | 5,542,506 | 534,021 |
| Events in quadrant C | 4,932,875 | 504,874 |
| Events in quadrant D | 3,717,090 | 499,033 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14852 | 2 |
| B | 0 | 21813 | 2 |
| C | 0 | 19911 | 2 |
| D | 0 | 15536 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7248 | 88 | 1.214128% |
| B | 7249 | 142 | 1.958891% |
| C | 7249 | 215 | 2.965926% |
| D | 7249 | 69 | 0.951855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8928 | 7250 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8929 | 7251 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8929 | 7251 | 19 | 19 | 0.21% | 0.26% |  |
| D | 8929 | 7251 | 15 | 15 | 0.17% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 23186 | 124.22 | 900 | 882 | 179.6 |
| A | 13 | 254 | 12411 | 64.21 | 900 | 882 | 179.6 |
| A | 3 | 137 | 9014 | 45.29 | 900 | 882 | 179.6 |
| B | 6 | 159 | 2016362 | 11747.48 | 890 | 866 | 171.6 |
| B | 0 | 190 | 23736 | 133.3 | 890 | 866 | 171.6 |
| B | 12 | 111 | 21618 | 120.95 | 890 | 866 | 171.6 |
| C | 3 | 233 | 1334304 | 6714.58 | 854 | 858 | 198.6 |
| C | 14 | 238 | 137106 | 686.08 | 854 | 858 | 198.6 |
| C | 10 | 22 | 119411 | 596.97 | 854 | 858 | 198.6 |
| D | 8 | 195 | 261123 | 1270.04 | 864 | 840 | 204.9 |
| D | 2 | 250 | 82062 | 396.32 | 864 | 840 | 204.9 |
| D | 7 | 238 | 41143 | 196.66 | 864 | 840 | 204.9 |

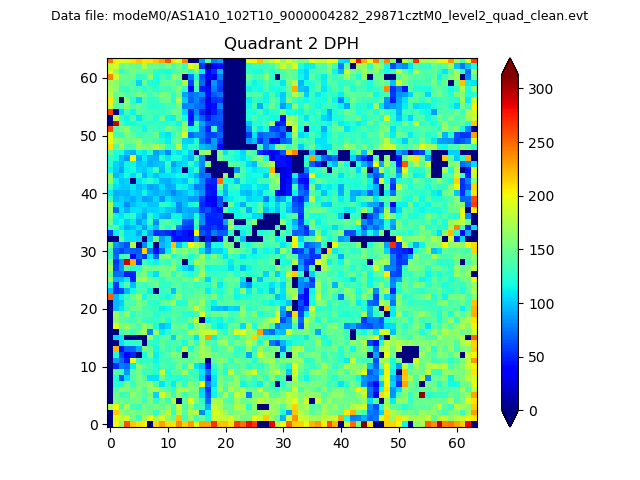

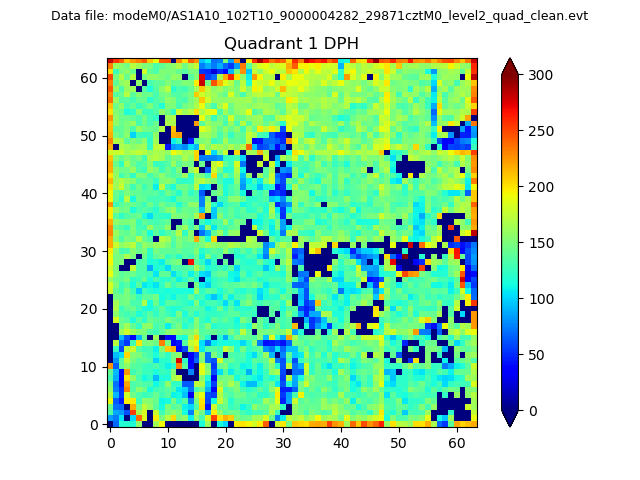

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

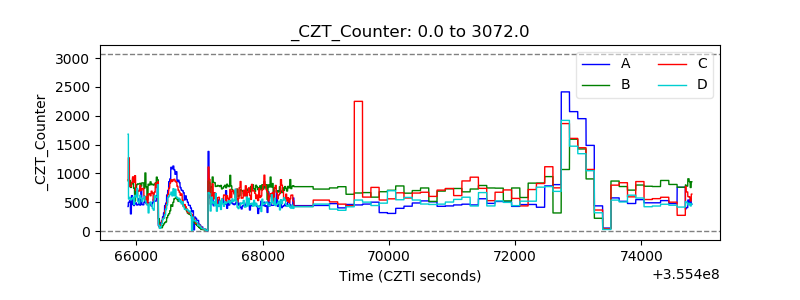

| CZT Counter |  |

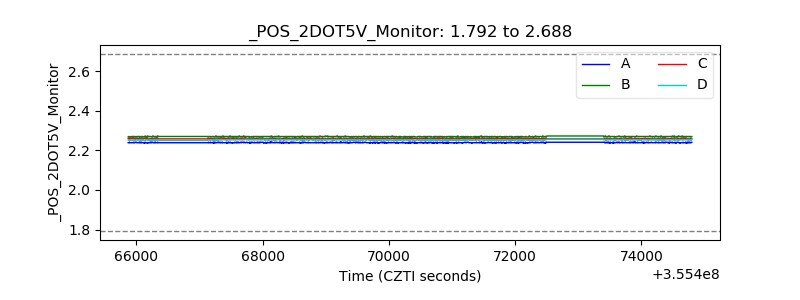

| +2.5 Volts monitor |  |

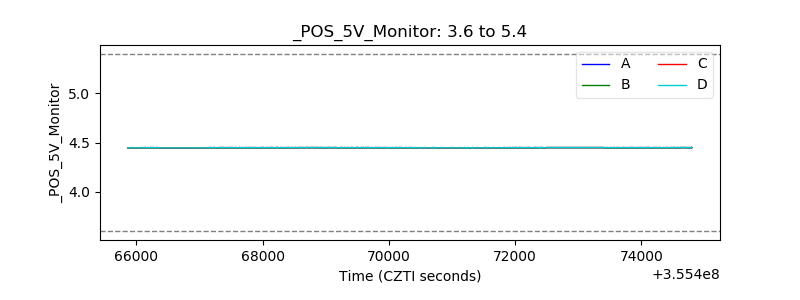

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

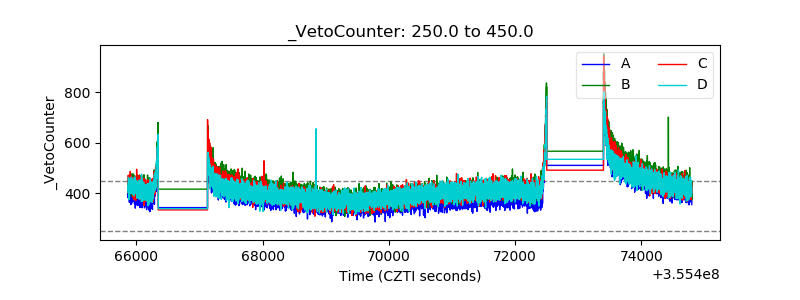

| Veto Counter |  |
